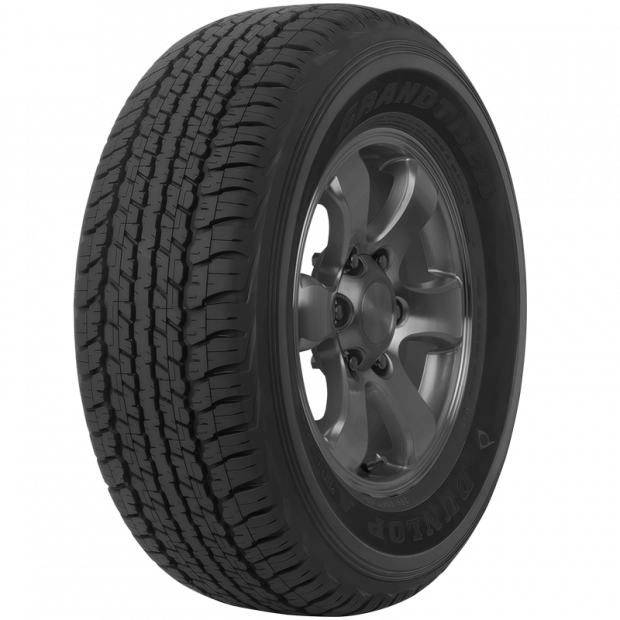

GRANDTREK AT20

A high-performance recreational tyre which provides superb all-round comfort. Fitted as OE in Japan to high-performance SUV vehicles

Type size	Load index	Speed Symbol		TL or TT	Overall Diam (mm)	Section Width (mm)	Measuring (inch)	Approved (inch)	Tread Depth (mm)
255/70R16	111	H	BLK	K	763	254	7,50	6.50-8.50	8,7
265/70R16	112	S	BLK	K	776	259	8,00	7.00-9.00	8,7
275/70R16	114	S	BLK	K	795	275	8,00	7.00-9.00	9,2
265/65R17	110	S	BLK	K	775	265	8,00	7.50-9.50	8,7
275/70R16	114	H	BKL	K	794	276	8.00	7.00 – 9.00	9.2
275/70R16	114	H	BLK	K	795	275	8.00	7.00 – 9.00	9.2
P245/70R17	108	S	BLK	K	777	249	7.00	6.50 – 8.00	8.7
P265/70R17	113	S	BLK	K	801	270	8.00	7.00 – 9.00	8.7
275/65R17	115	H	BLK	K	793	277	8.00	7.50 – 9.50	9.2
245/70R17	110	S	BLK	K	778	251	7.00	6.50 – 8.00	9.0
LT255/70R16	108/104	S	BLK	K	766	255	7.50	6,50 – 8.00	8.7
245/70R16	111	S	BLK	K	751	248	7.00	6.00 – 8.00	8.5
265/65R17	112	S	BLK	K	777	268	8.00	7.50 – 9.50	8.7
225/70R17	108	S	BLK	K	761	223	6.50	6.00 – 7.50	9.2
265/60R18	110	H	BLK	K	778	266	8.00	7.50 – 9.50	8.7
